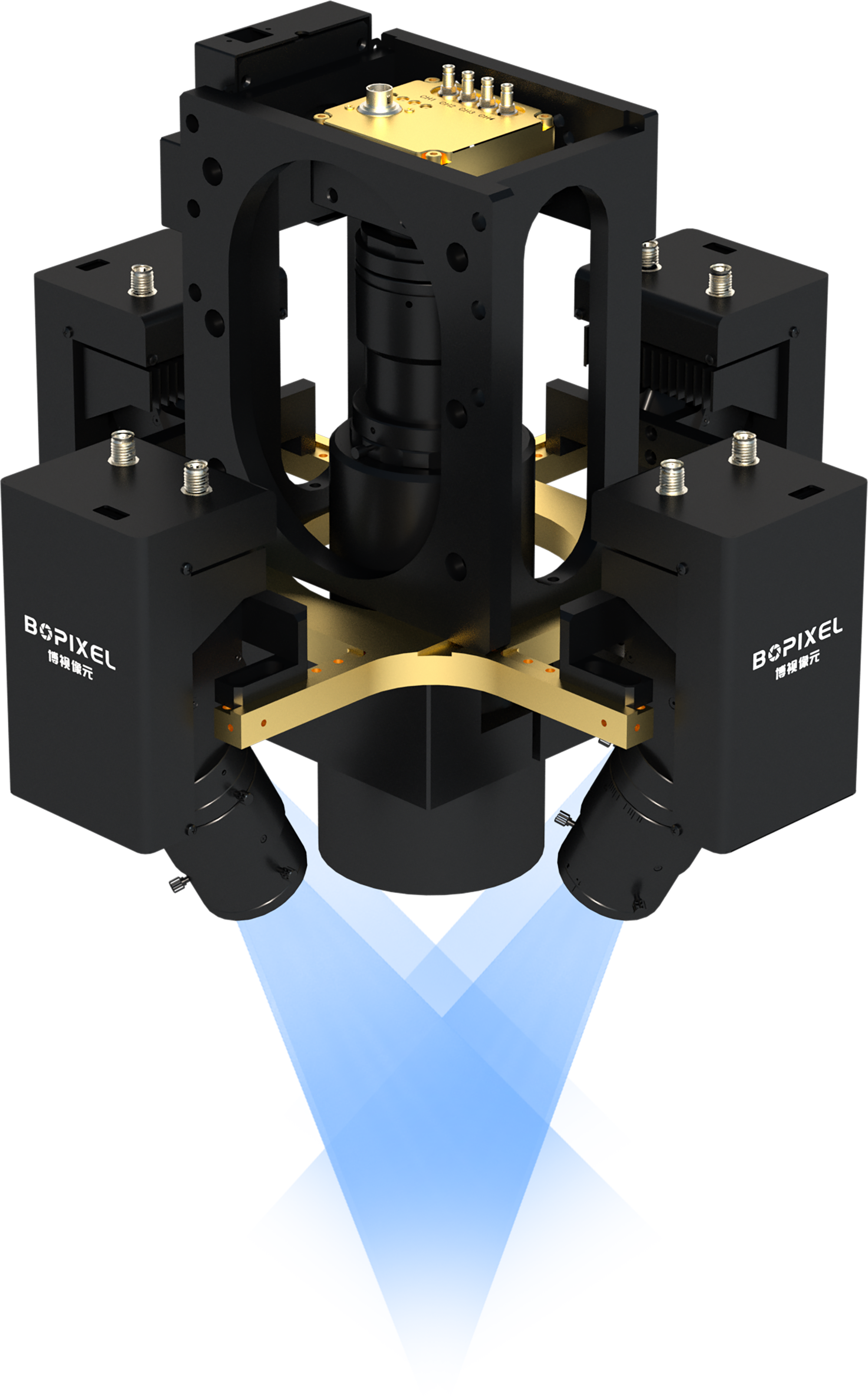

HRMQP47180M25
The RINDO HR series products have a z-axis repeatability of up to 50nm, a frame rate of up to 228FPS, 65 million points of cloud data, a Sharm projectiondesign, and a high depth of field, effectively solving the problems of high reflectivity and shadow obstruction. They are widely used in high-precision inspection scenarios such as semiconductor wafers, chips, and SMT.
Features
- Projection design based on Scheimpflug principle, ultra-high depth of field
- Effectively solve high reflection, shadow and occlusion problems
- Widely used in high-precision inspection scenarios such as wafers, chips, and SMT
Specifications
- Working Distance（mm)
- 178
- Depth of Field（mm)
- 5
- FOV（mm）
- 50*50
- DLP
- 1920×1080
- CMOS Resolution
- 25M
- Repeatability 3
- 4um
- Frame Rate
- ≤4.3FPS
- Light Source
- 459nm
- Input Voltage
- 12V（10A）
