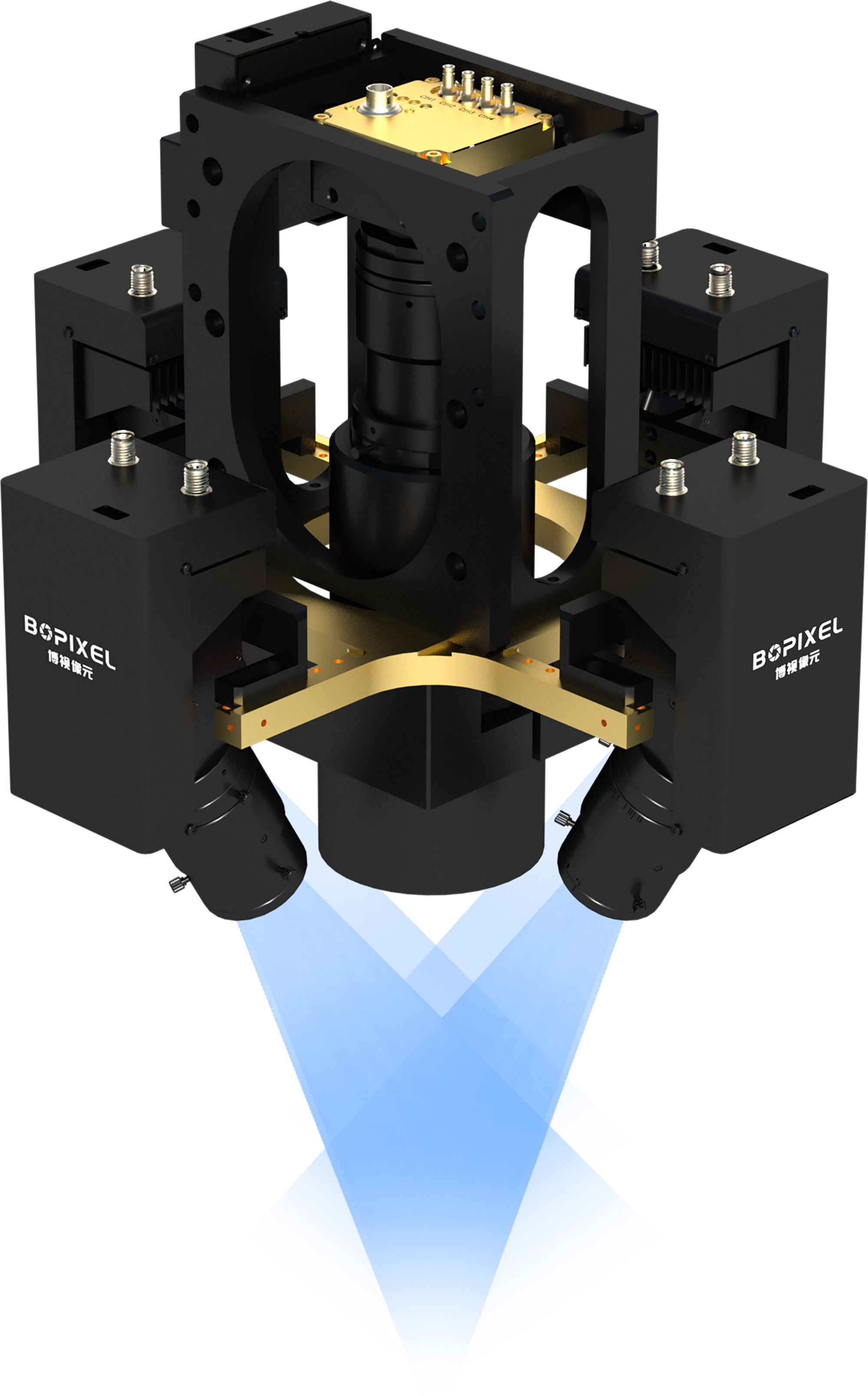

HRMBP47180M20
The RINDO HR series products have a z-axis repeatability of up to 50nm, a frame rate of up to 228FPS, 65 million points of cloud data, a Sharm projectiondesign, and a high depth of field, effectively solving the problems of high reflectivity and shadow obstruction. They are widely used in high-precision inspection scenarios such as semiconductor wafers, chips, and SMT.
Features
- Projection design based on Scheimpflug principle, ultra-high depth of field
- Effectively solve high reflection, shadow and occlusion problems
- Widely used in high-precision inspection scenarios such as wafers, chips, and SMT
Specifications
- Working Distance（mm)
- 158
- Depth of Field（mm)
- 10
- FOV（mm）
- 135.2×77.1
- DLP
- 36.2×36.2
- CMOS Resolution
- 20M
- Repeatability 3
- 3um
- Frame Rate
- ≤4.2FPS
- Light Source
- 459nm
- Input Voltage
- 12V（10A）
