BC-SM/C3M6X1(Straight/Right Angle)
BC-SM/C3M6X1(Straight/Right Angle)
Sensor: SONY Pregius 2nd Gen series 、Dimension: 40mm x 40mm only、Ultra-low power with fanless design、Automatic optical correction with high imaging quality
Features
- Sensor: SONY Pregius 2nd Gen series
- CoaXPress 6/10 interface, with maximum frame rate up to 187.46FPS
- Resolution：3.2M
- Dimension: 40mm x 40mm only
- Ultra-low power with fanless design
- Automatic optical correction with high imaging quality
Specifications
- Resolution
- 3.2M
- CMOS
- IMX252
- color
- mono/color
- Frame Rate
- 187.46FPS
- Number Of Pixels（HxV）
- 2048×1536
- Target Surface
- 1/1.8
- Pixel Size（um）
- 3.45×3.45
- Lens Mount
- C
- Remark
- CXP-6/-3, MicroBNC, Connector×1, Straight/Right Angle

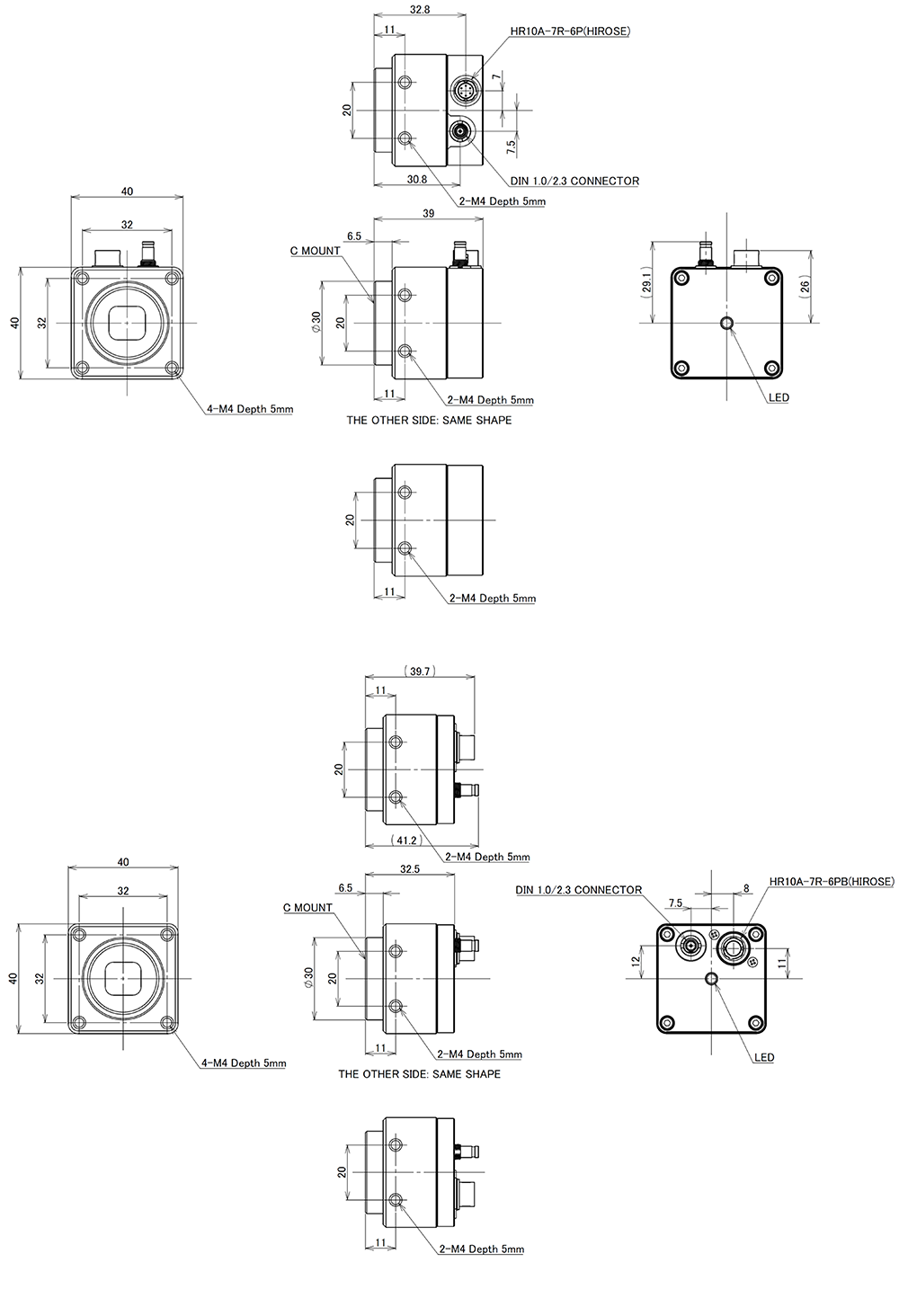

Dimensions
