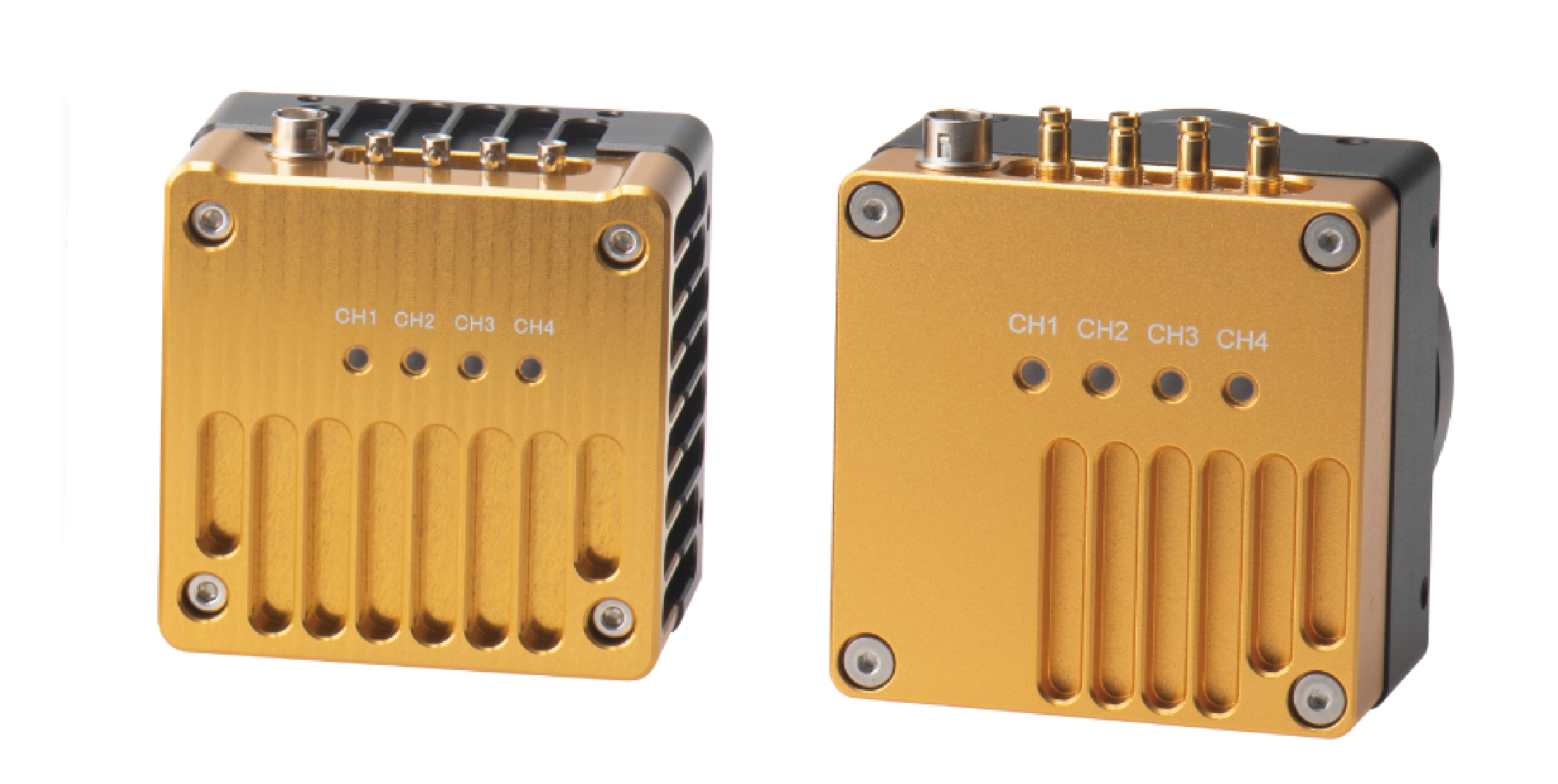

BC-GM/C65M6X4H(Straight/Right Angle)
BC-GM/C65M6X4H(Straight/Right Angle)
Sensor: GMAX3265 65M、Dimension: 70mm x 70mm only、Ultra-low power with fanless design、Automatic optical correction with high imaging quality
Features
- Sensor: GMAX3265 65M
- Interface:4 Lane CoaXPress, support PoCXP
- Support CXP-12, with maximum frame rate up to 35.5FPS
- Dimension: 70mm x 70mm only
- Ultra-low power with fanless design
- Automatic optical correction with high imaging quality
Specifications
- Resolution
- 65M
- CMOS
- GMAX3265
- color
- mono/color
- Frame Rate
- 35.5FPS
- Number Of Pixels（HxV）
- 9344×7000
- Sensor Format
- 29.9×22.4(Diagonal length:37.44mm)
- Pixel Size（um）
- 3.2×3.2
- Lens Mount
- F/M42
- Remark
- CXP-10/-6/-3, MicroBNC connector×4 ,Straight/Right Angle
Spectral response
Dimensions
F-Mount (Straight)
M42-Mount (Right Angle）
