HP3517B

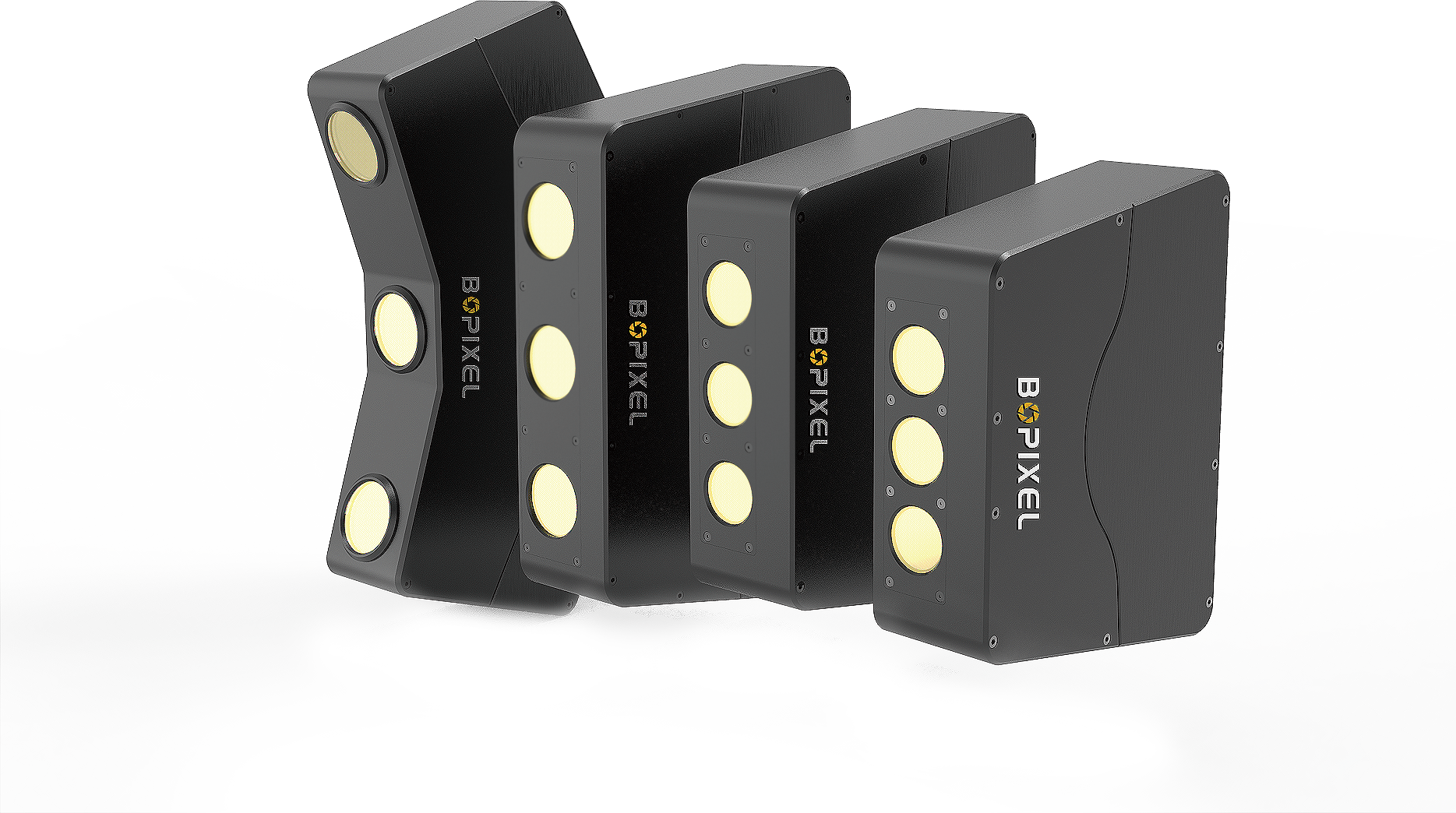

RINDO HP series products 10 million level point cloud data, em bedded GPU,support AI expansion, effectively solve high reflection, shadow occlusion problems\Solid appearance, compact structure, support IP65.
Features
- The amount of point cloud data reaches 10 Maga
- Effectively solve high reflection, shadow and occlusion problems
- Compact and durable, reaching IP (Ingress Protection) 65 standard
Specifications
- Working Distance(mm)
- 170
- Depth of Field(mm)
- 35
- FOV (mm)
- 100x70
- DLP
- 1280x720
- CMOS Resolution
- 5M
- XY Resolution
- 45μm
- Repeatability 3
- 5μm
- Frame Rate
- ≤3 FPS
- Light Source
- 459nm
- Input Voltage
- 24V（5A）
- Interface
- GigE
Dimensions
