OPR305100

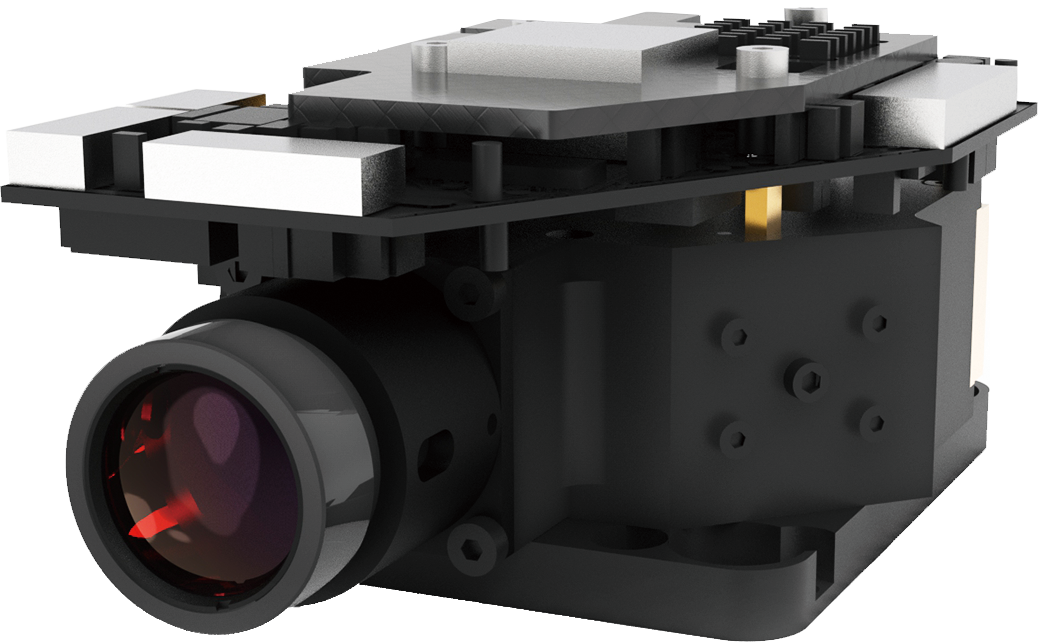

The industrial projection module based on the DLP micromirror chipset is very suitable for the solution of programmable high-speed light graphics. Precise optical design and structural design can ensure high-quality projection effects; the integrated design of the main control board and optical-mechanical module realizes precise light control at the pixel level. It is small in size and provides a standardized interface, which is convenient for users to use and integrate.
Features
- DLP3010LC, 0.3 720p DMD
- Resolution is 1280×720
- High-precision small field of view projection, front projection/sham mode applicable to a wide range of scenes
- High-speed graphics rates up to 2487Hz (1-bit) and 272Hz (8-bit)
- High contrast ratio 1000:1, low distortion <0.05%, high uniformity >94%
- 459nm blue LED design
- Excellent temperature control system design
- The world's smallest size DLP industrial projector
Specifications
- Working Distance（mm）MIN
- 90
- Working Distance（mm）TYP
- 100
- Working Distance（mm）MAX
- 115
- Projection frame (mm)
- 24.3×13.7
- Depth of field (mm)
- ±4
- Throw Ratio
- 4.12
- Accuracy（μm）
- 19
- Model
- Front cast
- Dimensions（mm）
- 92×67×41
- Distortion
- <0.05%
- Light Source
- Blu ray
Dimensions
