OPR407200OPR407 SERIES

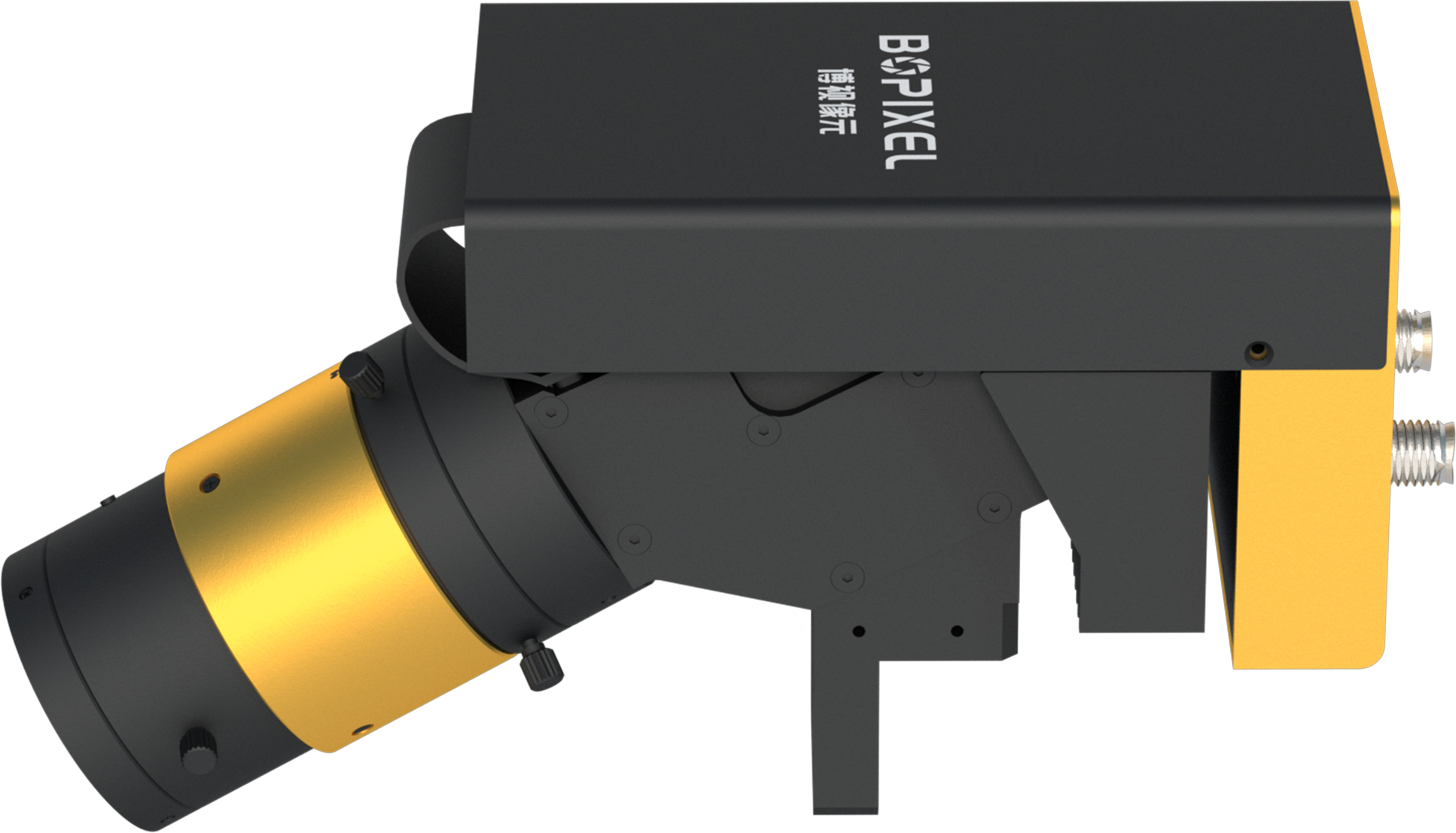

The industrial projection module based on the DLP micromirror chipset is very suitable for the solution of programmable high-speed light graphics. Precise optical design and structural design can ensure high-quality projection effects; the integrated design of the main control board and optical-mechanical module realizes precise light control at the pixel level. It is small in size and provides a standardized interface, which is convenient for users to use and integrate.

Request A Quote

Features

· Resolution 1920×1080
· Small FOV with high precision, orthograph/Scheimpflug for wider application
· High graphics rate up to 2847 Hz（1 bit）and 437Hz（8 bit）
· Contrast 800:1, distortion<0.1%, uniformity>92%
· LED light source optional
· Outstanding temperature control system design
· Compatible with standard C mount

Specifications

Working Distance（mm）MIN
1000
Working Distance（mm）TYP
2000
Working Distance（mm）MAX
3000
Projection frame (mm)
1667×938
Depth of field (mm)
±300
Throw Ratio
1.2
Accuracy（μm）
868
Model
orthograph
Dimensions（mm）
201×147×67
Distortion
<1%
Light Source
RGB

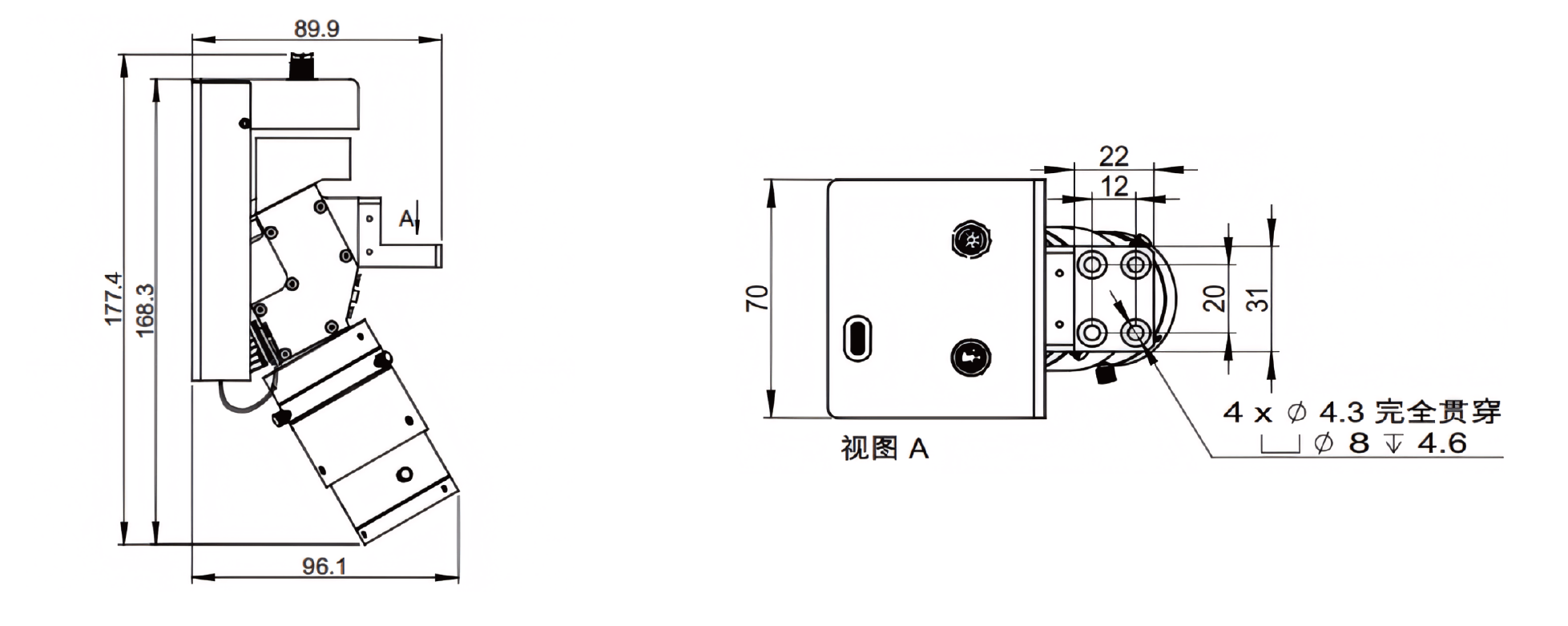

Dimensions
