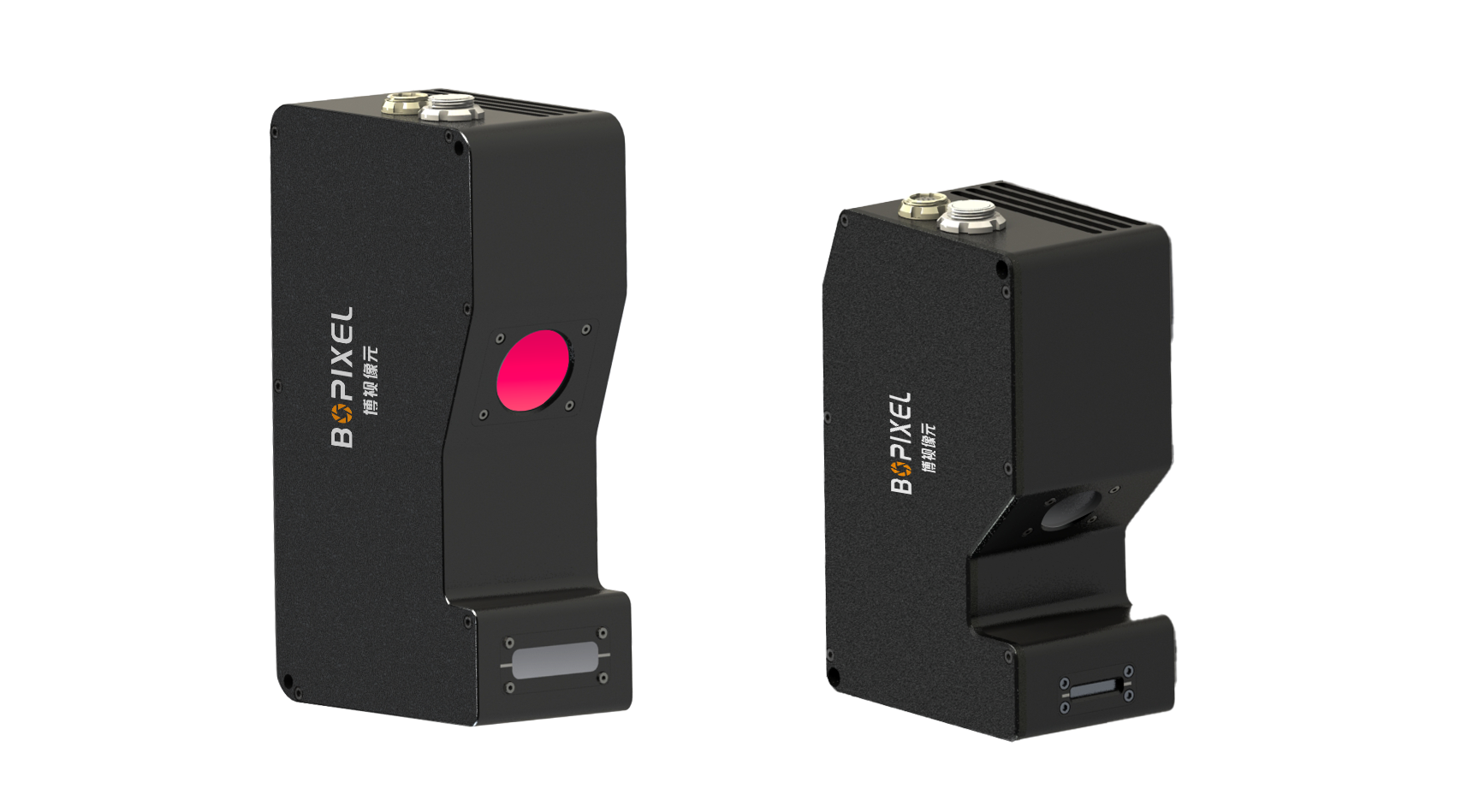

BLS-X200D300
Features
- X-direction resolution 5-7um
- Ultra high measurement accuracy, Z-axis repeatability accuracy of 0.2um
- Ultra high detection rate, up to 15kHz at 2K contour points
- Larger measurement range, maximum field of view up to 14mm
- 2-Megapixel sensor, high dynamic range imaging (HDR)
Specifications
- Points Per Profile
- 2048
- Profile speed (Hz)
- 3462
- XResolution X(um)
- 57-137
- X-FOV(mm)
- 118-282
- Z方向线性度
- 0.05%的MR
- Linearity Z
- 2
- Reference Distance(mm)
- 100
- Measurement Range(mm)
- ±155
- Laser Wave-length
- 638nm
- Power Supply
- （+）24VDC
- Power Consumption
- 15W
- Interface
- Gigabit Ethernet
External View
