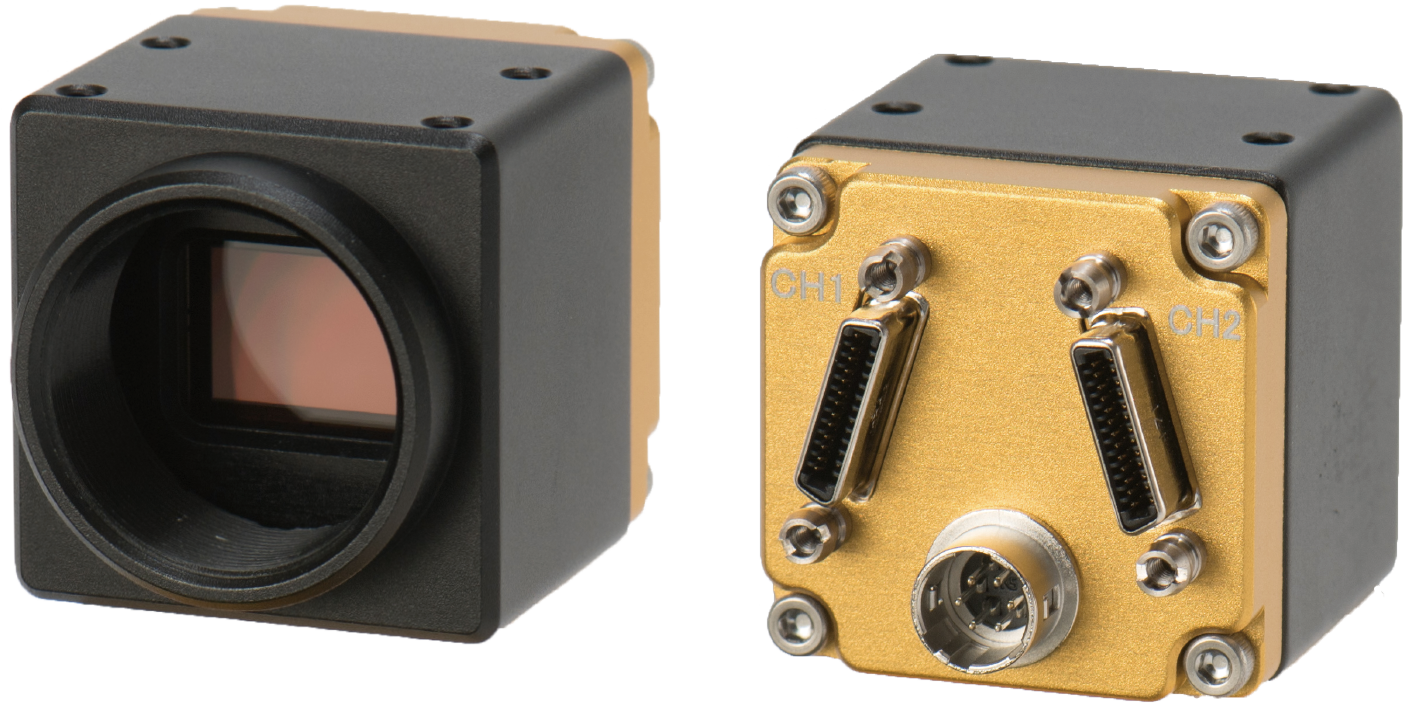

BC-SM/C12MCL
This series of cameras adopted a simple, highly reliable and widely used machine vision interface that specifies the transmission and reception signals between the camera and frame grabber board standardized in 2000.This interface is ideal for stably capturing high pixels and high fps.
Features
- Ultra-low power with fanless design
- Automatic optical correction with high imaging quality
Specifications
- Resolution
- 12.3M
- CMOS
- IMX253
- Color / Mono
- mono/color
- Frame Rate
- 66.6FPS
- Pixel HxV（HxV）
- 4096X3000
- Pixel Size（um）
- 3.45×3.45
- Lens Mount
- C
- Interface
- PoCL auto swtich, SDR connector×2

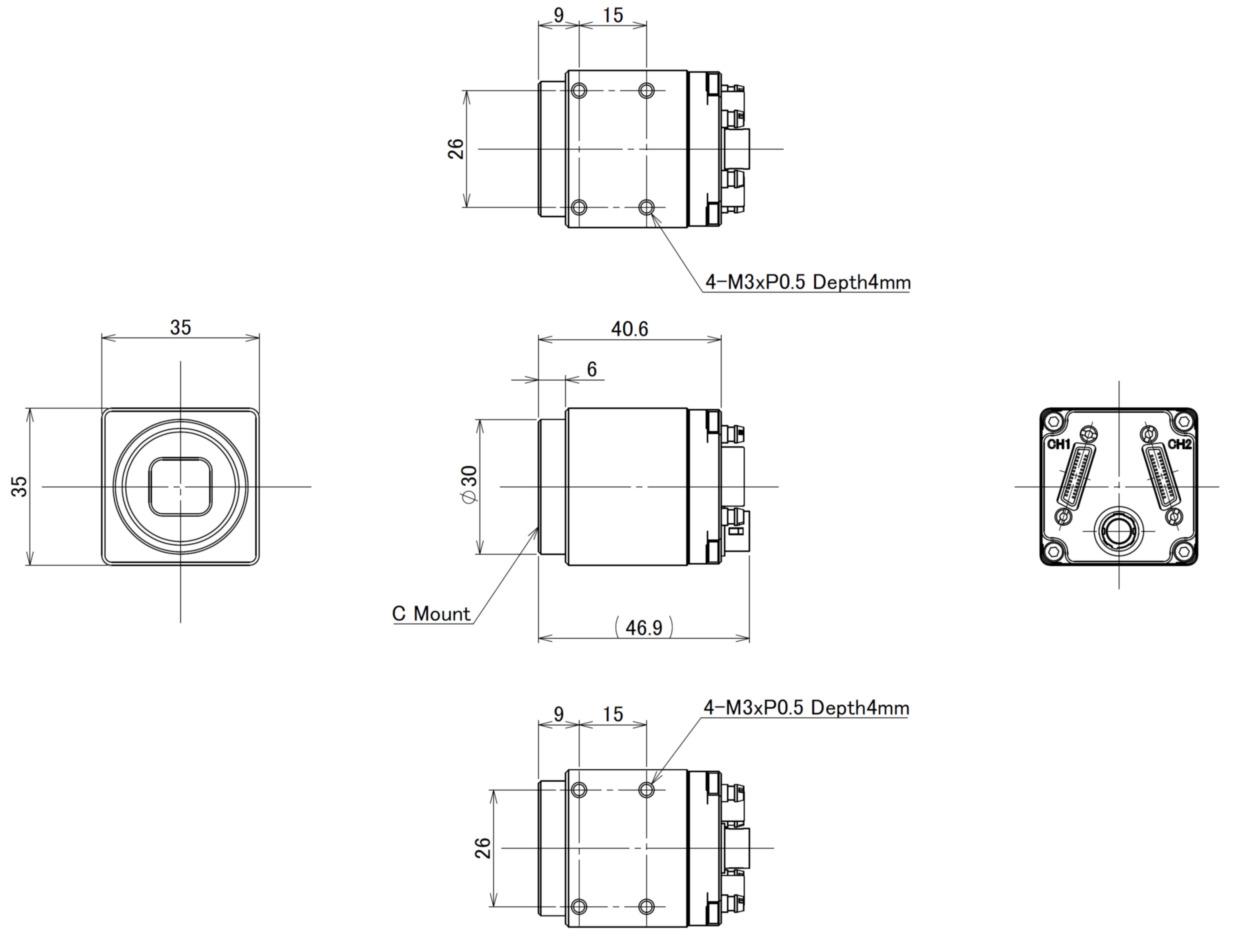

尺寸外观
