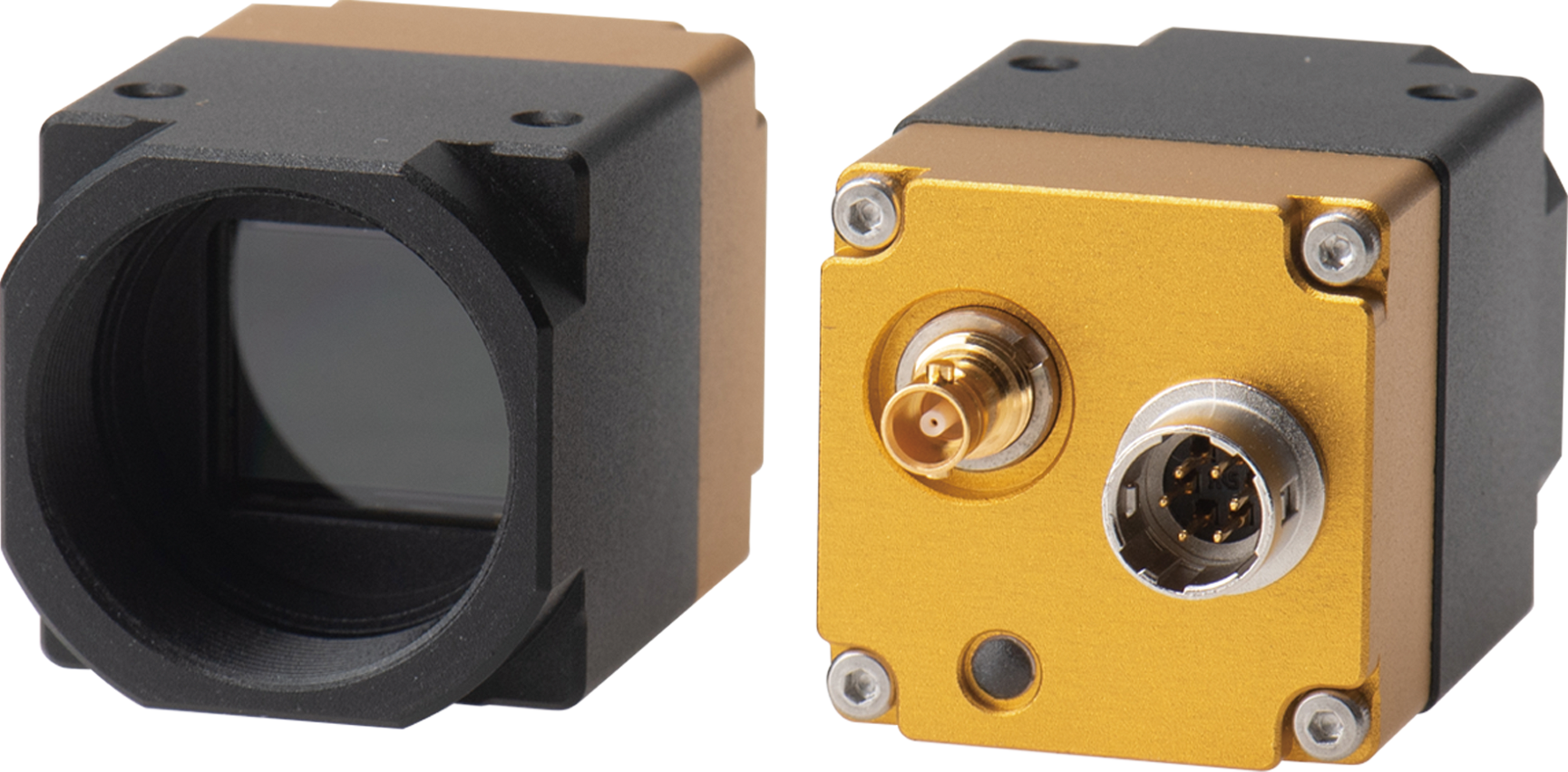

BC-SM/CS12M10X1N
BC-SM/CS12M10X1N
SONY Pregius 3rd Gen/Pregius S ,Ultra-low power with fanless design,Automatic optical correction with high imaging quality
Features
- Sensor:Sony Pregius 3rd Gen/Pregius series
- CoaXPress 3 interface, with maximum frame rate up to 66.5FPS
- Resolution：12M
- Dimension: 29mm x 29mm only
- Ultra-low power with fanless design
- Automatic optical correction with high imaging quality
Specifications
- Resolution
- 12.4M
- CMOS
- IMX545
- color
- mono/color
- Frame Rate
- 66.5FPS
- Number Of Pixels（HxV）
- 4096×3008
- Target Surface
- 1/1.1
- Pixel Size（um）
- 2.74×2.74
- Lens Mount
- C
- Remark
- CXP-10/-6/-3, MicroBNC, Connector×1
Dimensions
