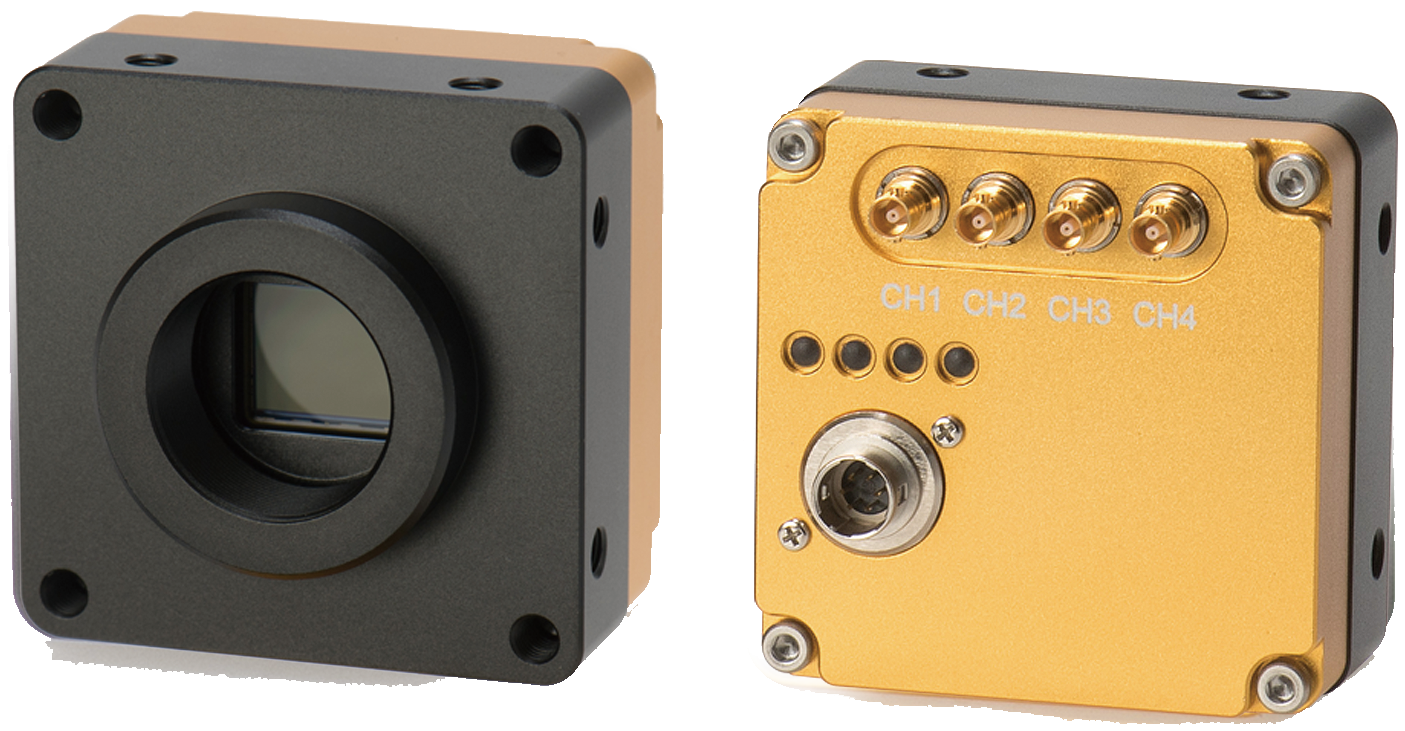

BC-SM/C24M6X4(Straight/Right Angle)
BC-SM/C24M6X4(Straight/Right Angle)
Sensor:SONY Pregius S Series 、Dimension: 60mm x 60mm only、Ultra-low power with fanless design、Automatic optical correction with high imaging quality
Features
- Sensor:SONY Pregius S Series
- Interface: 4 Lane CoaXPress, support PoCXP
- CoaXPress 10 interface, with maximum frame rate up to 94.5FPS
- Resolution：24.6M
- Dimension: 60mm x 60mm only
- Ultra-low power with fanless design
- Automatic optical correction with high imaging quality
Specifications
- Resolution
- 24.6M
- CMOS
- IMX530
- color
- mono/color
- Frame Rate
- 94.5FPS
- Number Of Pixels（HxV）
- 5312×4608
- Target Surface
- 1.2
- Pixel Size（um）
- 2.74×2.74
- Lens Mount
- C
- Remark

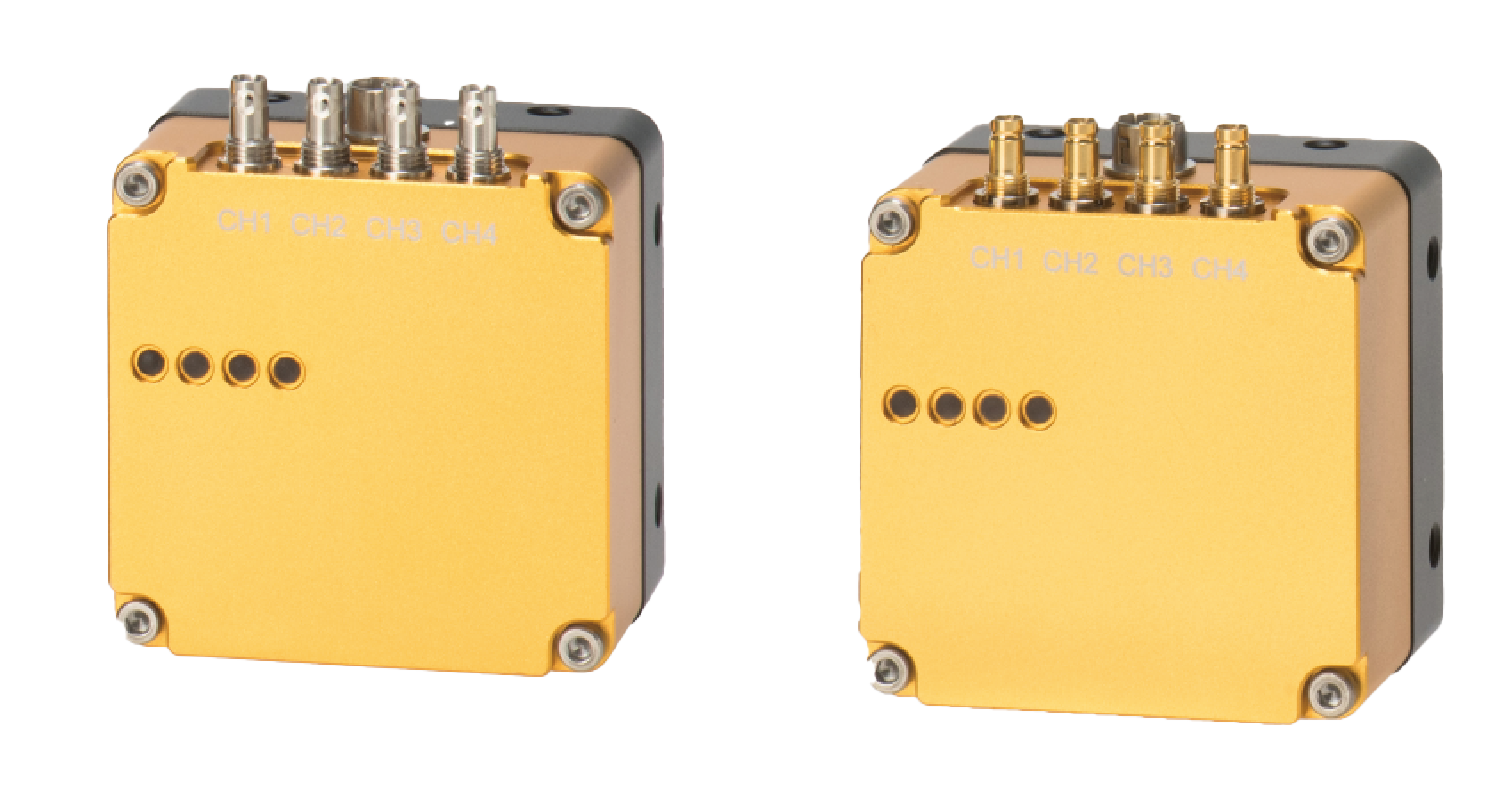

- CXP-6/-3, MicroBNC connector×1 ,Straight/Right Angle
Dimensions
