BC-GM/C25M12X4
It is a 25MP camera equipped with Gpixel GMAX0505 sensor, capable of imaging up to 150fps with CXP-12x4 Lane output. Combining high resolution and high speed, it has a pixel size of 2.5 micrometers and an image size of 1.1 inches, making it suitable for the needs of small size and high pixel size, while supporting C mount.
Features
- Sensor: GMAX0505
- Interface:4 Lane CoaXPress, support PoCXP
- Support CXP-12, with maximum frame rate up to 150.3FPS
- Dimension: 70mm x 70mm only
- Ultra-low power with fanless design
- Automatic optical correction with high imaging quality
Specifications
- Resolution
- 25M
- CMOS
- GMAX0505
- color
- mono/color
- Frame Rate
- 140.4 FPS
- Number Of Pixels（HxV）
- 5120×5120
- Sensor Format
- 1.1
- Pixel Size（um）
- 2.5*2.5
- Lens Mount
- C
- Remark
- At the rear, CXP-12/-10/-6/-3, MicroBNC connector×4

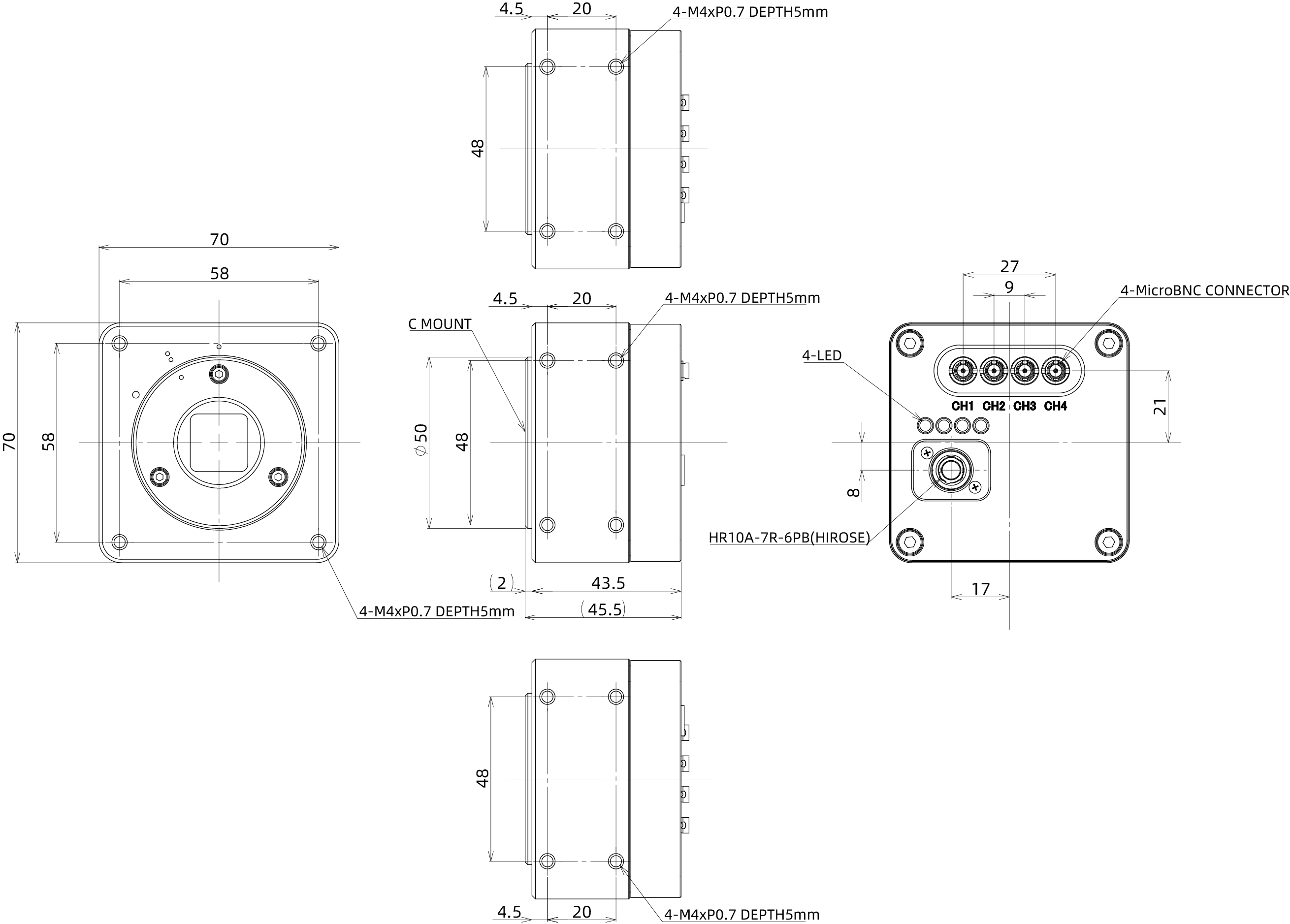

Dimensions
