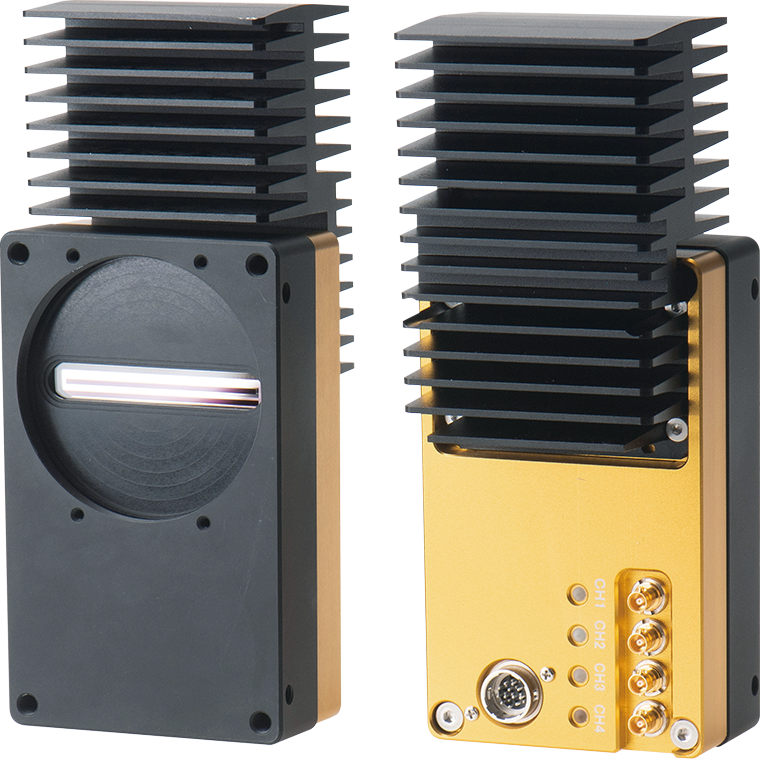

BL-GM9K12X4(Water cooling)
GMAX 3265 equipped with Gpixel is a high-resolution and high-speed machine vision camera capable of imaging at a maximum of 71 fps with a 65-megapixel CXP-12×4Lane output. By adopting next-generation key components and excellent design technology, it has successfully achieved miniaturization of the case size and achieved fanless due to its excellent heat dissipation. The CXP-6×4Lane model with high versatility and the CXP-12×4Lane model that achieves the fastest frame rate of the sensor are available. Although it is high-end, it is also very cost-effective. The protruding direction of the connector can be selected from the rear interface type and the side interface type, and the front and four sides are equipped with sockets for installation, so it can be studied according to the usage environment.
Features
- High-speed, high-sensitivity monochrome TDI line scan camera
- Effective resolution: 9072
- Integrated dual bands: 256 levels and 32 levels respectively
- Maximum frame rate: 529kHz
- Lens mount: M58 / F / M72
- Interface: CoaXPress1.1, CXP-12×4
Specifications
- Model
- BL-GM9K12X4
- Resolution
- 9K
- CMOS
- GLT5009BSI
- Color
- mono
- Frame Rate
- 529kHz
- Number Of Pixels HxV
- 9072×288(256+32)
- Pixel Size (um)
- 5.0×5.0
- Lens Mount
- M58/F/M72
- Remark
- CXP-12/-10/-6/-3, MicroBNC connector × 4
Dimensions

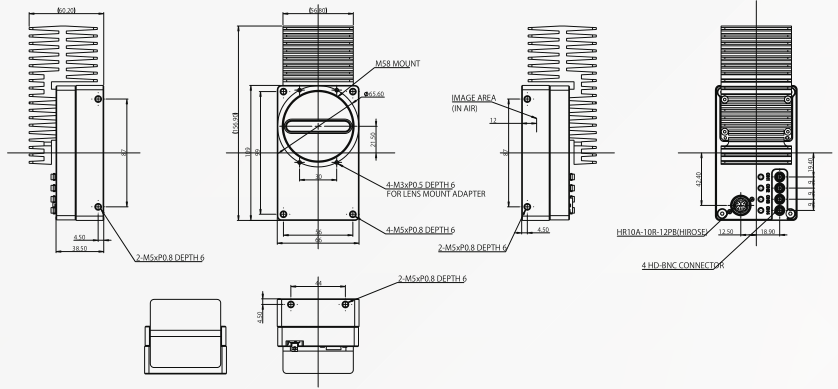

M58-Mount

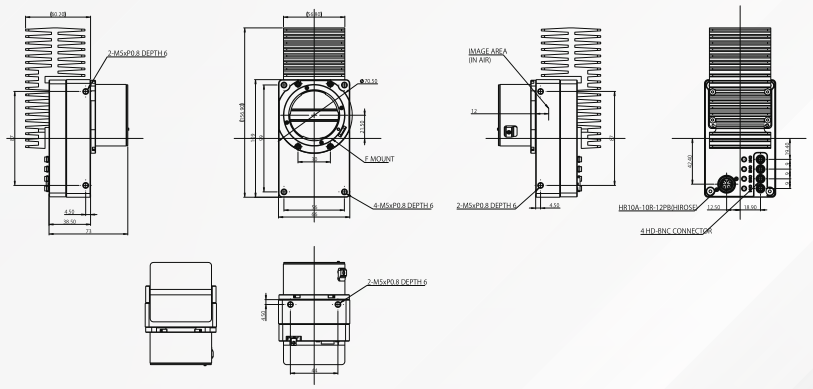

F-Mount
